PRODUCTS. BALL VALVES

BALL  VALVES
Thanks to the reliable and strong relationships with the most important manufacturers and dealers worldwide and to our own production marked LUNA, we can supply at an interesting level of price, quality and delivery time, Trunnion or Floating Ball valves, cast or forged, both in ANSI and in DIN standard.

  Forged or barstock ball valves
--- Two - Three pieces or monobloc body
--- Threaded, socket-weld or butt-welding end connections
--- Size from 1/4 to 2 (Full bore or Reduced bore)
--- Pressure from 150 to 2500 Lbs
--- Materials: A105, LF2, F316, F304, F51, F53, F55, Titanium, Exotic materials

  Floating ball valves
--- One or two pieces body, bolted or welded
--- Side entry or Top entry execution
--- Soft or metal seated
--- Threaded, socket-weld or butt-welding end connections
--- Size from 1/2 to 12 (Full bore or Reduced bore)
--- Pressure from 150 to 2500 Lbs in ASME version and from PN 16 to
     PN 420 in DIN version
--- Materials: WCB, LCC, CF3M, CF8M, CF8, CF3, Titanium, Exotic materials

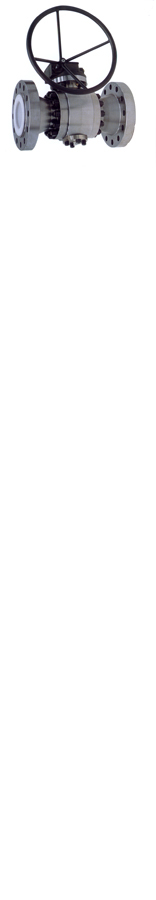

  Trunnion ball valves
--- Bolted or welded body
--- Side entry or Top entry execution
--- Soft or metal seated
--- Threaded, socket-weld, butt-welding, HUB or BS end connections
--- Size from 1/2 to 56 (Full bore or Reduced bore)
--- Pressure from 150 to 2500 Lbs in ASME version and from PN 16 to
     PN 420 in DIN version
--- Materials: WCB, LCC, CF3M, CF8M, CF8, CF3, Titanium, Exotic materials

In addition LUNA can help you to find Ball valves in special executions and/or for particular applications such as:
--- Wafer type valves
--- Cryogenic valves
--- Three-Four ways valves
--- Jacketed valves

Each valve is supplied with inspection and test materials certifications according to the relevant standards and specifications.


Forged steel valves - Cast steel valves - Ball valves - Other types of valves - Other products
