PRODUCTS. FORGED STEEL VALVES

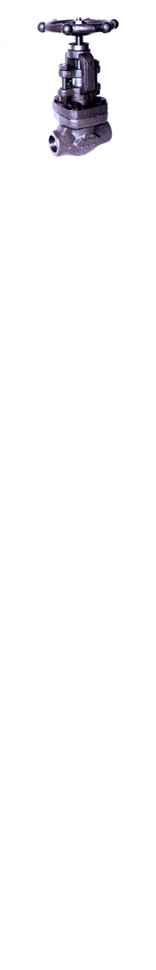

FORGED STEEL VALVES
Thanks to the reliable and strong relationships with the most important manufacturers and dealers worldwide, we can supply at an interesting level of price, quality and delivery time, Gate, Globe and Check (piston, ball and swing) forged steel valves, both in ANSI and in DIN standard, in any kind of execution or material required:



  ANSI standard, OS & Y version, threaded or socket weld end connections
--- class: 800-1500-2500-4500
--- size from 1/4 to 2 (Full bore or Reduced bore)
--- body-bonnet connection: bolted bonnet (with SS/graphoil gasket or
     metallic ring-joint) or welded bonnet (sealing or full penetration welding);

  ANSI standard, OS & Y version, integrally flanged or BW end connections
--- class: 150-300-600-900-1500-2500
--- size from 1/2 to 3 (Full bore or Reduced bore)
--- body-bonnet connection: bolted bonnet (with SS/graphoil gasket or
     metallic ring-joint) or welded bonnet (sealing or full penetration welding);

  DIN standard, OS & Y version, integrally flanged or BW end connections
--- class: PN 25-40-63-100-160-250
--- size from DN 15 to DN 50
--- body-bonnet connection: bolted bonnet (with SS/graphoil gasket or
     metallic ring-joint) or welded bonnet (sealing or full penetration welding);

ASTM materials: A105-LF2-F11-F22-F5-F9-F316H-F316L-F321-F347-F44-F51-F55- Monel- Alloy 20- Incolloy, Titanium, etc.
DIN materials: 1.0460-1.0566-1.7362-1.7335-1.4571-1.4541- etc.
Trim: F6-F304-F316- Monel- etc, Stellited (HF) or not.

In addition LUNA can supply also forged steel valves in special executions and/ or for particular applications such as:
--- Extended body gate valves with different type of end connections
--- Bellows seal gate and globe valves
--- Cryogenic gate and globe valves
--- Alkylation valves
--- Y Pattern globe valves
--- Inside screw valves
--- Angle globe valves
--- Valves with nipples, locking device, position indicator etc.
--- Stop- check valves
--- TA-LUFT valves

Each valve is supplied with inspection and test materials certifications according to the relevant standards and specifications.


Forged steel valves - Cast steel valves - Ball valves - Other types of valves - Other products
